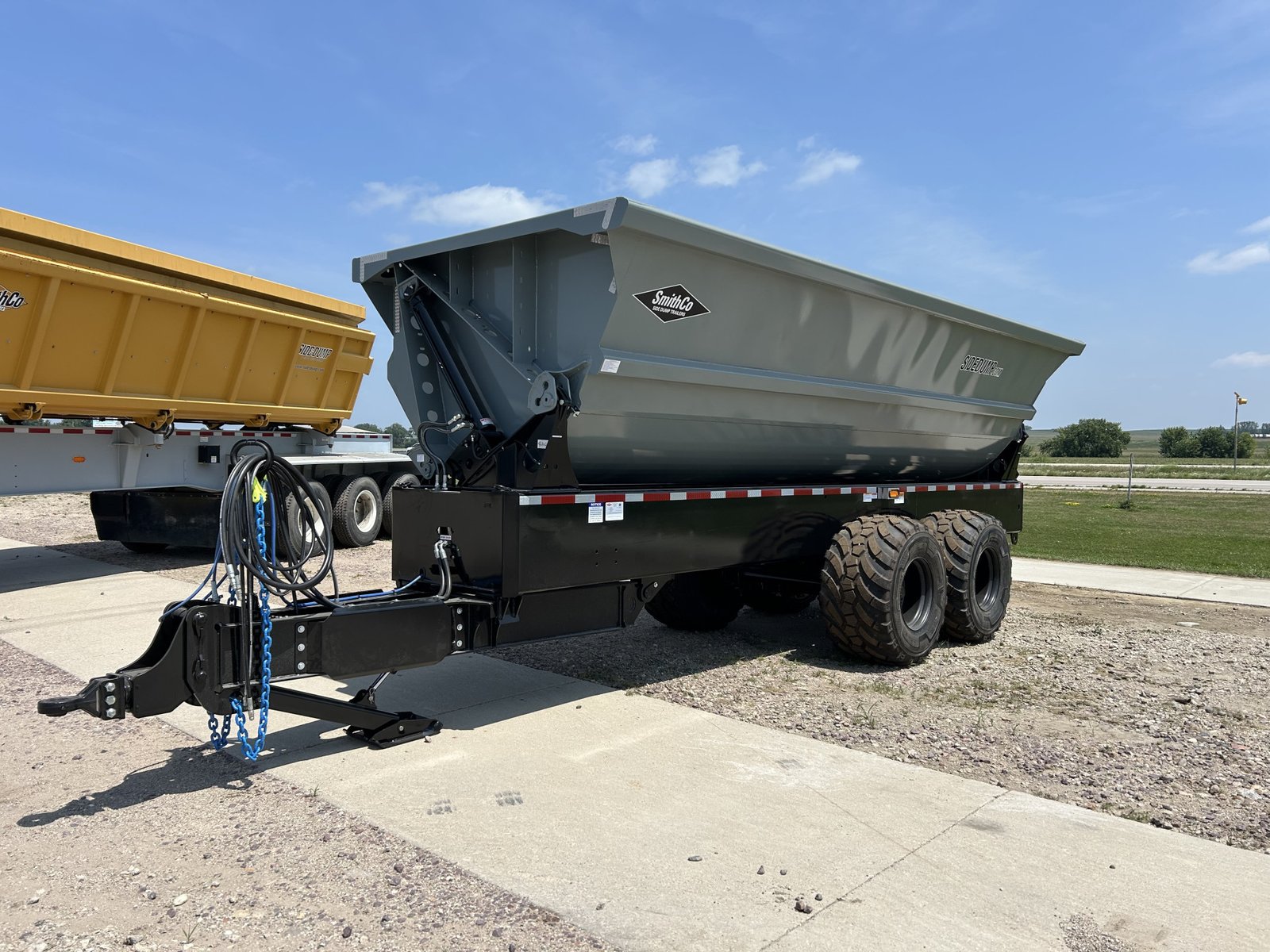

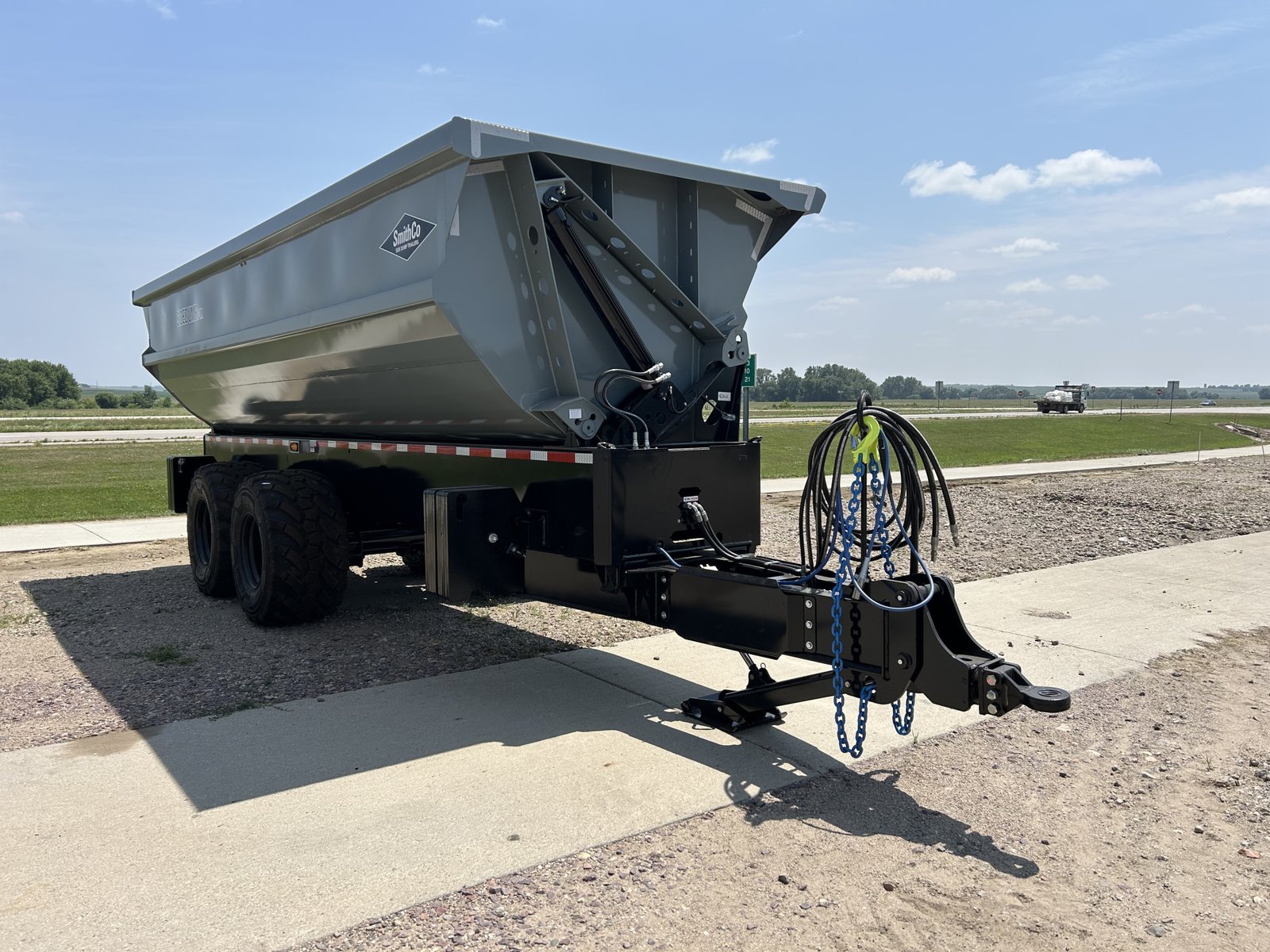

2026 Smithco CPSHV20 Super High Volume Ag Pup Dump Trailer – 33′ Fixed Tandem Axles
$42,600.00

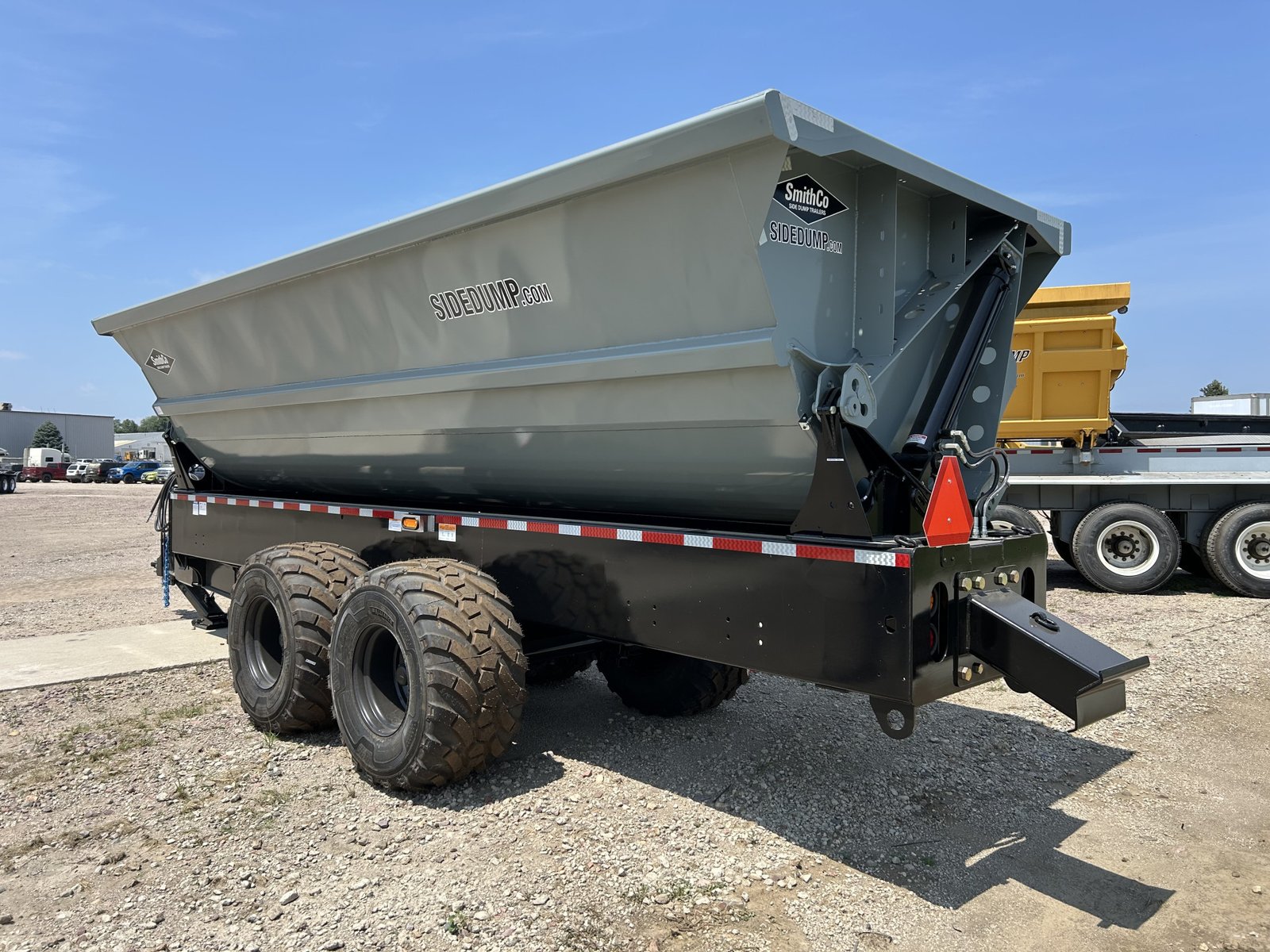

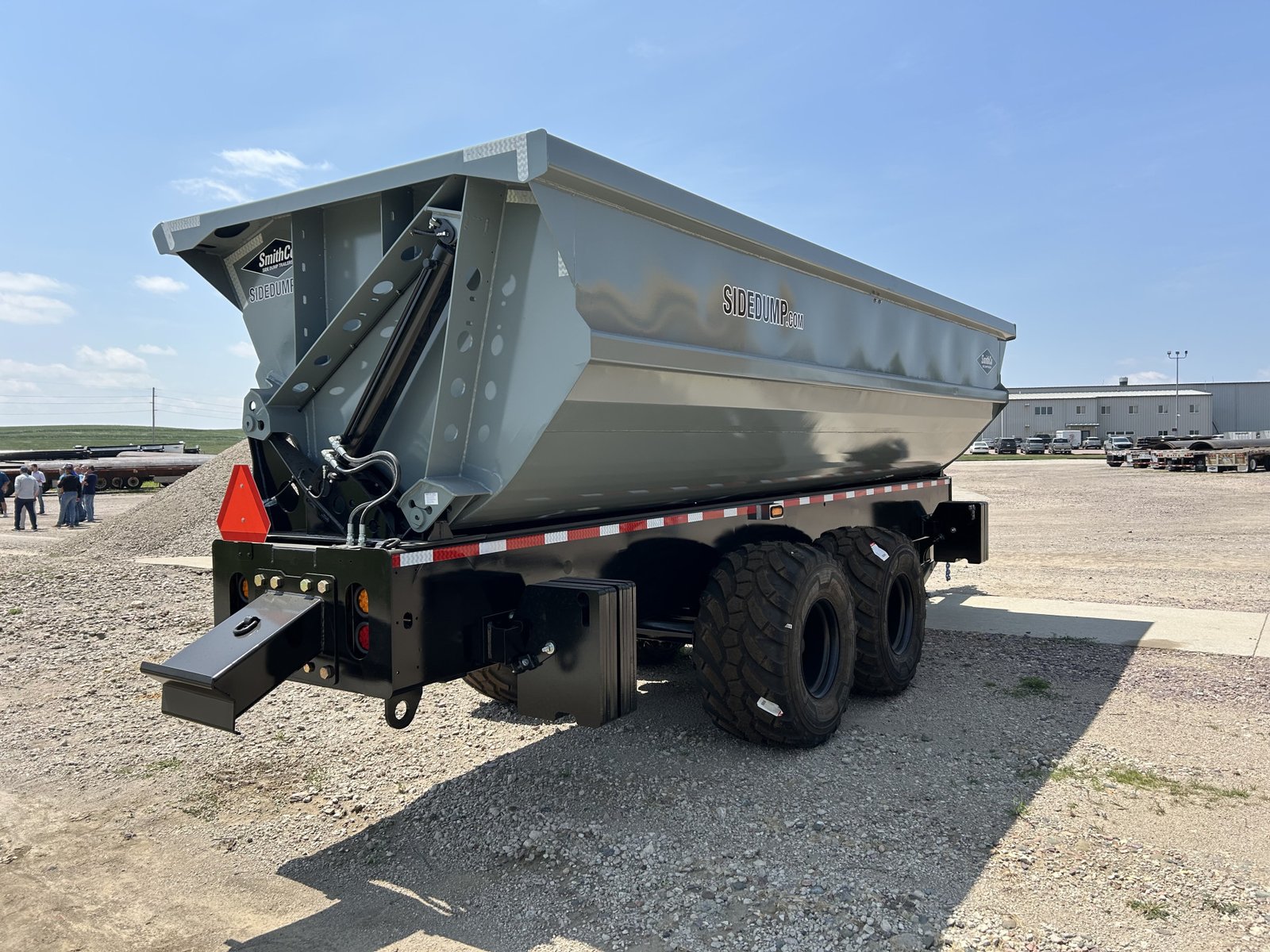

2026 Smithco CPSHV20 Super High Volume Ag Pup Dump Trailer designed for agricultural, construction, demolition, and heavy-duty hauling applications. This 20-ton capacity trailer features a durable AR450 steel tub, high-strength fabricated steel frame, 25,000 lb. axles, single-point suspension, and a low loading height. The trailer is watertight and designed for a wide range of hauling applications, including animal waste, dirt and sand, demolition materials, seasonal grain, and silage.
Off Road – No FET. Price is FOB the factory. Call for availability, options and pricing.
Specifications
- Manufacturer: Smithco
- Model: CPSHV20
- Year: 2026
- Trailer Type: Dump, Side
- Length: 33′
- Axle Type: Fixed (Tandem Axles)
- Width: 102″
- Net Payload Rating: 20 tons
- Capacity: 25.5 cu. yd. Waterfull / 29 cu. yd. Heaped
- Frame Length: 32′ 10″
- Tub Length: 23′
- Tub Construction: 1/8″ G80 sides, 3/16″ AR450 floor, round floor style tubs
- Frame Construction: 80/100 ksi fabricated steel I-beam

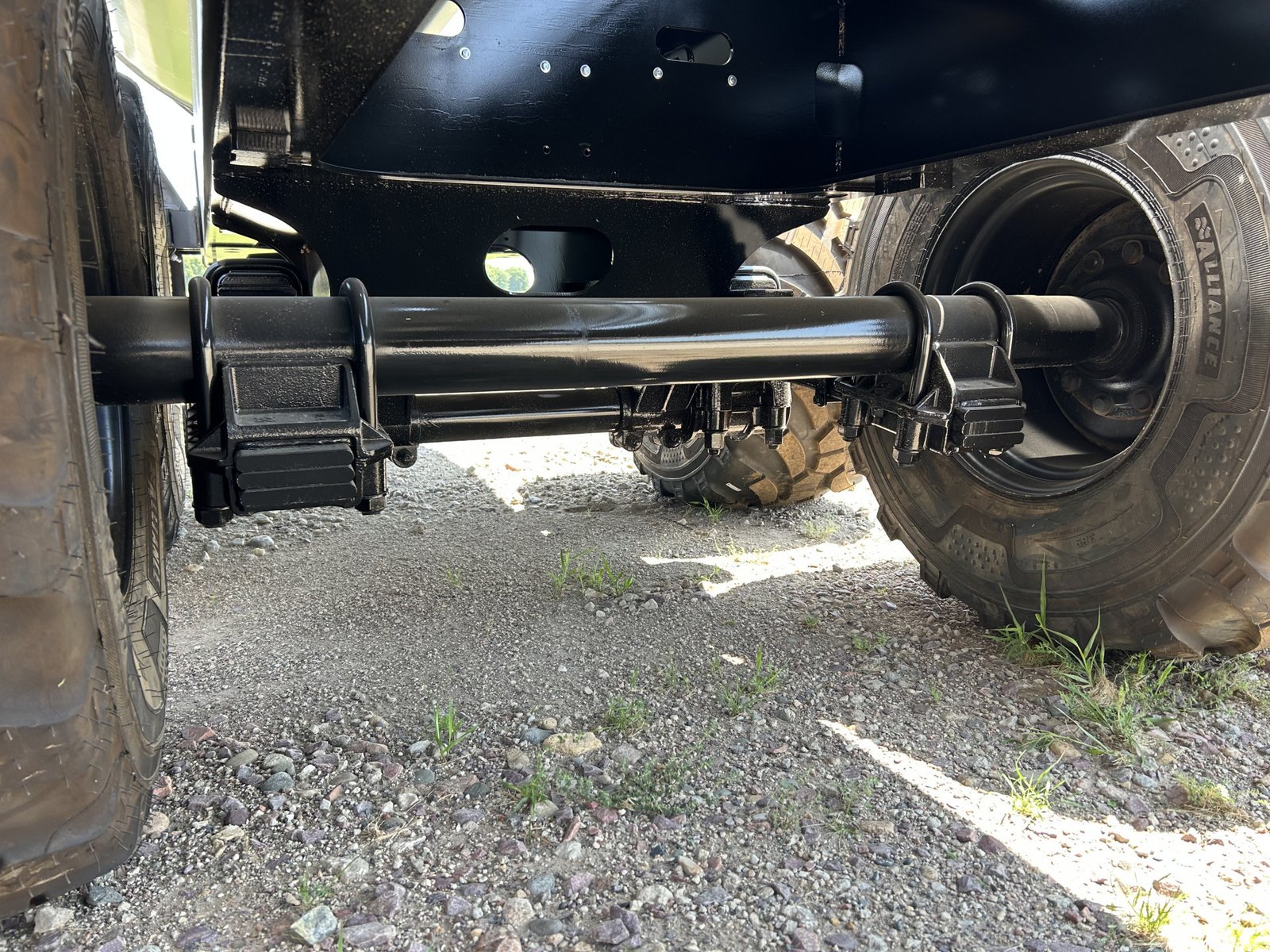

- Axles: 25,000 lb. capacity

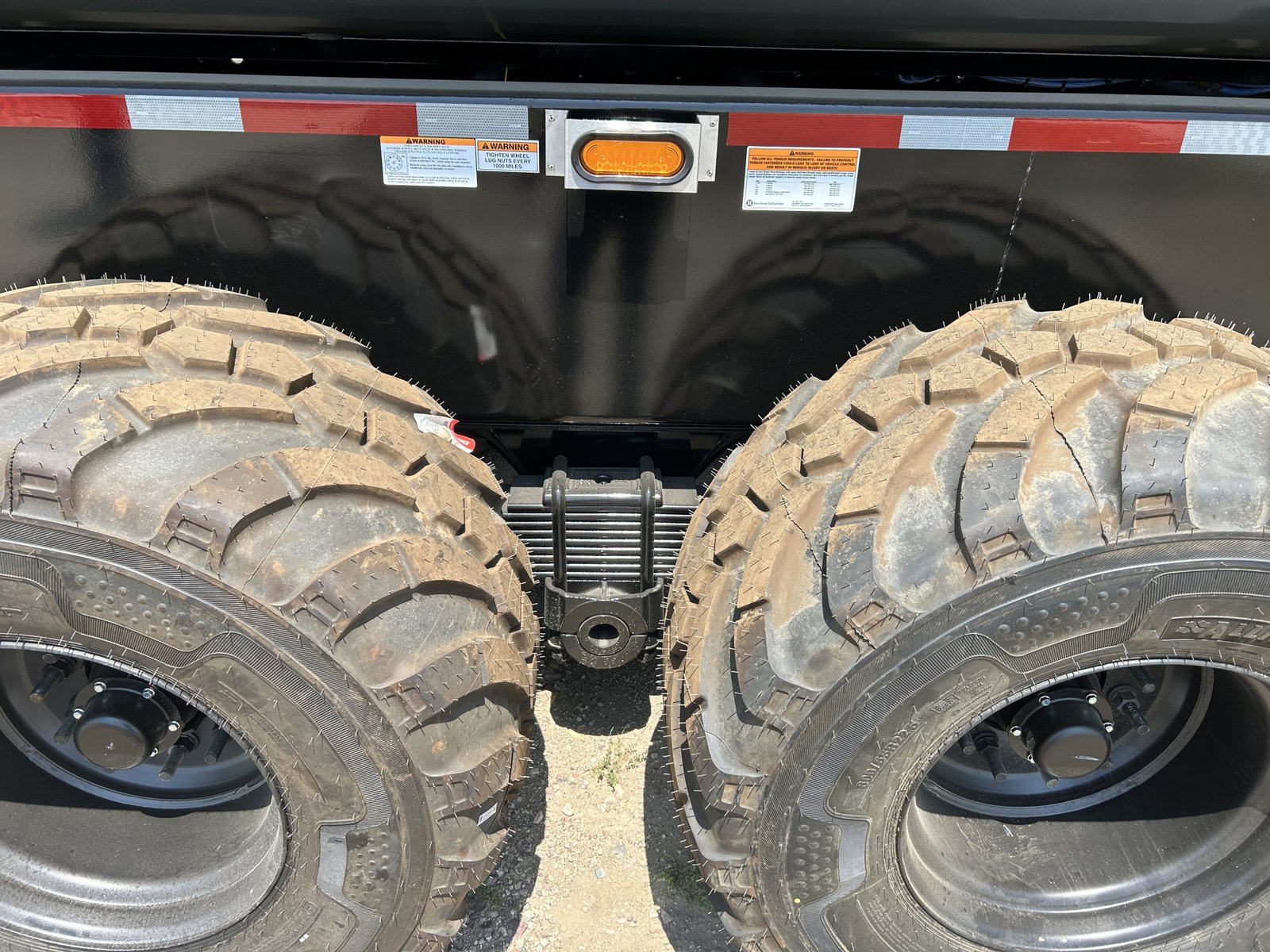

- Suspension: Hutch H-900 60,000 lb. single point
- Hubs: 10-hole, hub piloted
- Drums: Outboard mount, cast steel

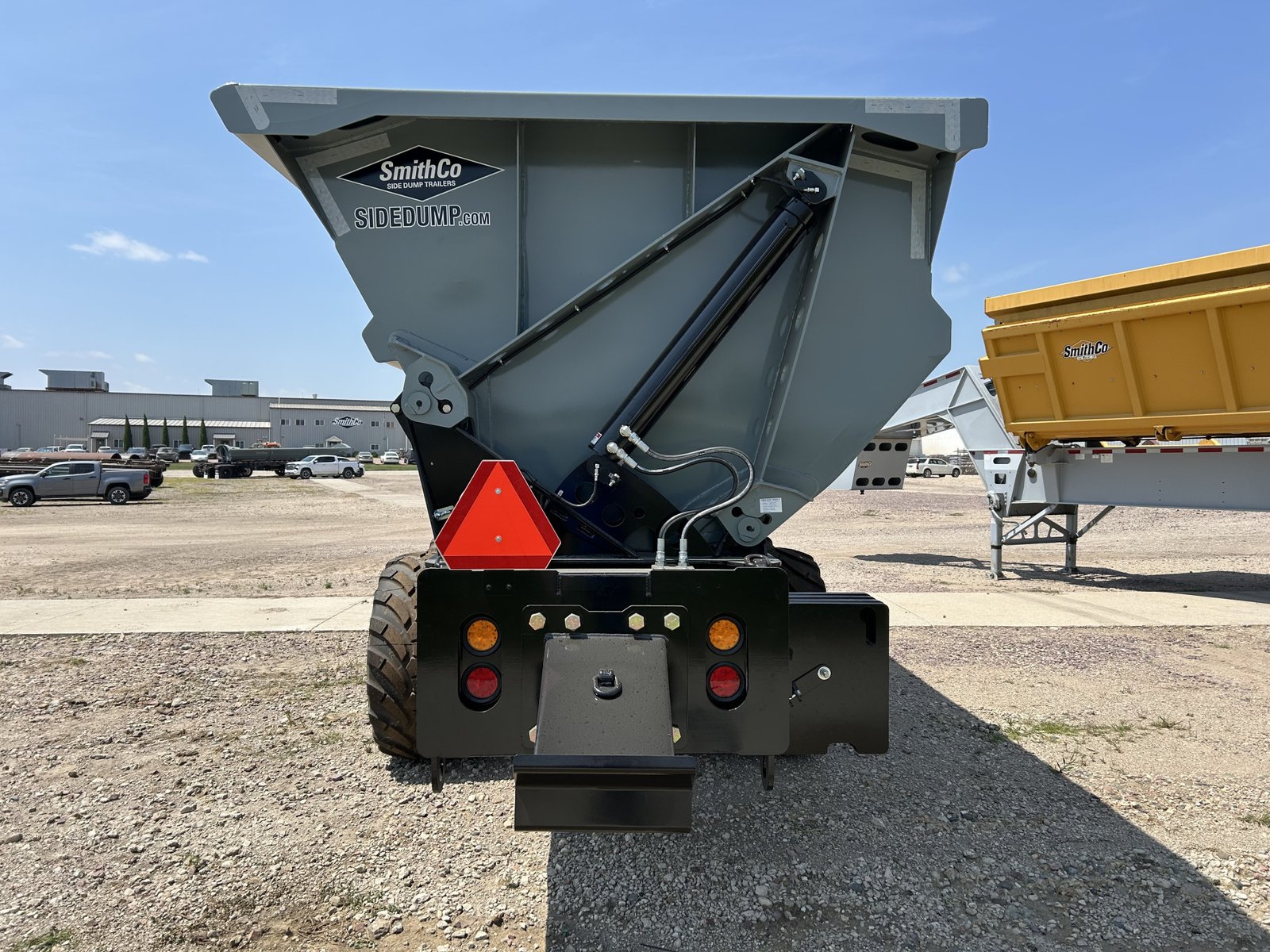

- Cylinders: 3500 psi, 5″ bore
- Hinges: Self-aligning, spherical bearing type, greaseable

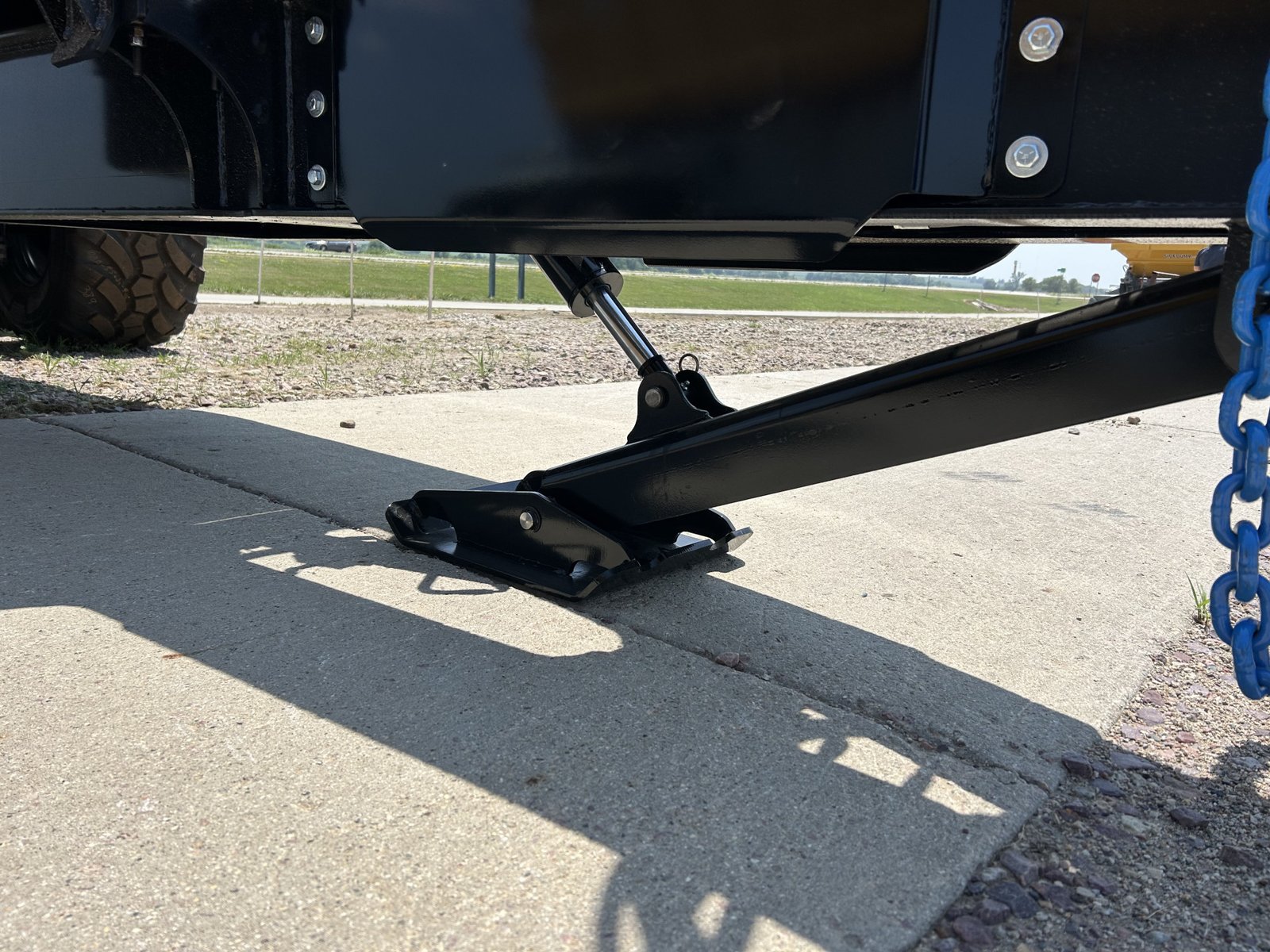

- Landing Gear: High clearance

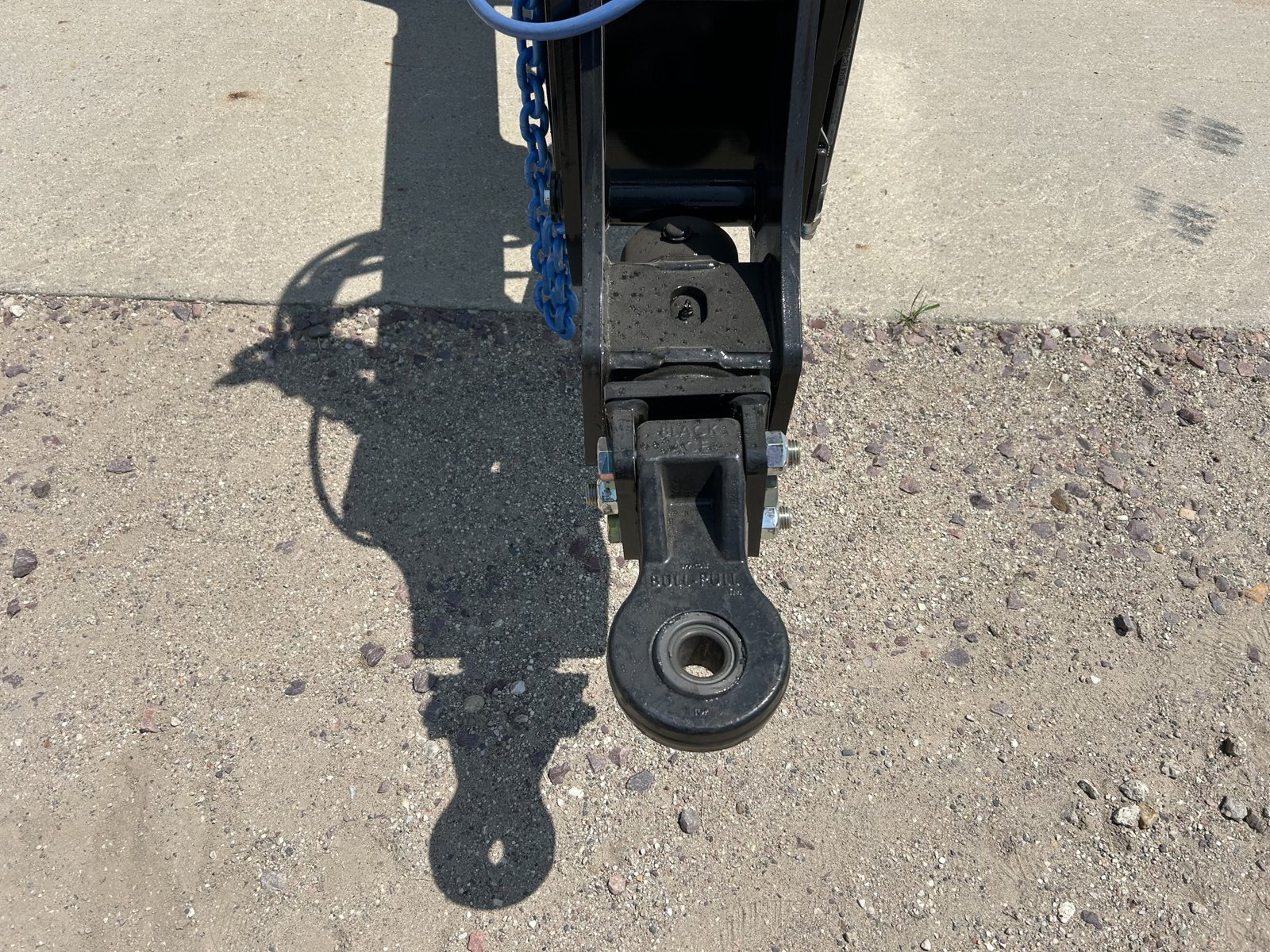

- Towing Eye: Rotating Bull Pull or Ag Hitch, 2″ drawbar pin
- Pushblock: Standard, 24″ extensions available
- Safety Chains: 1/2″ safety chains with safety hooks
- Loading Height: 10′ 2″ (122″)
- Wheels: Tubeless steel disc
- Tires: New

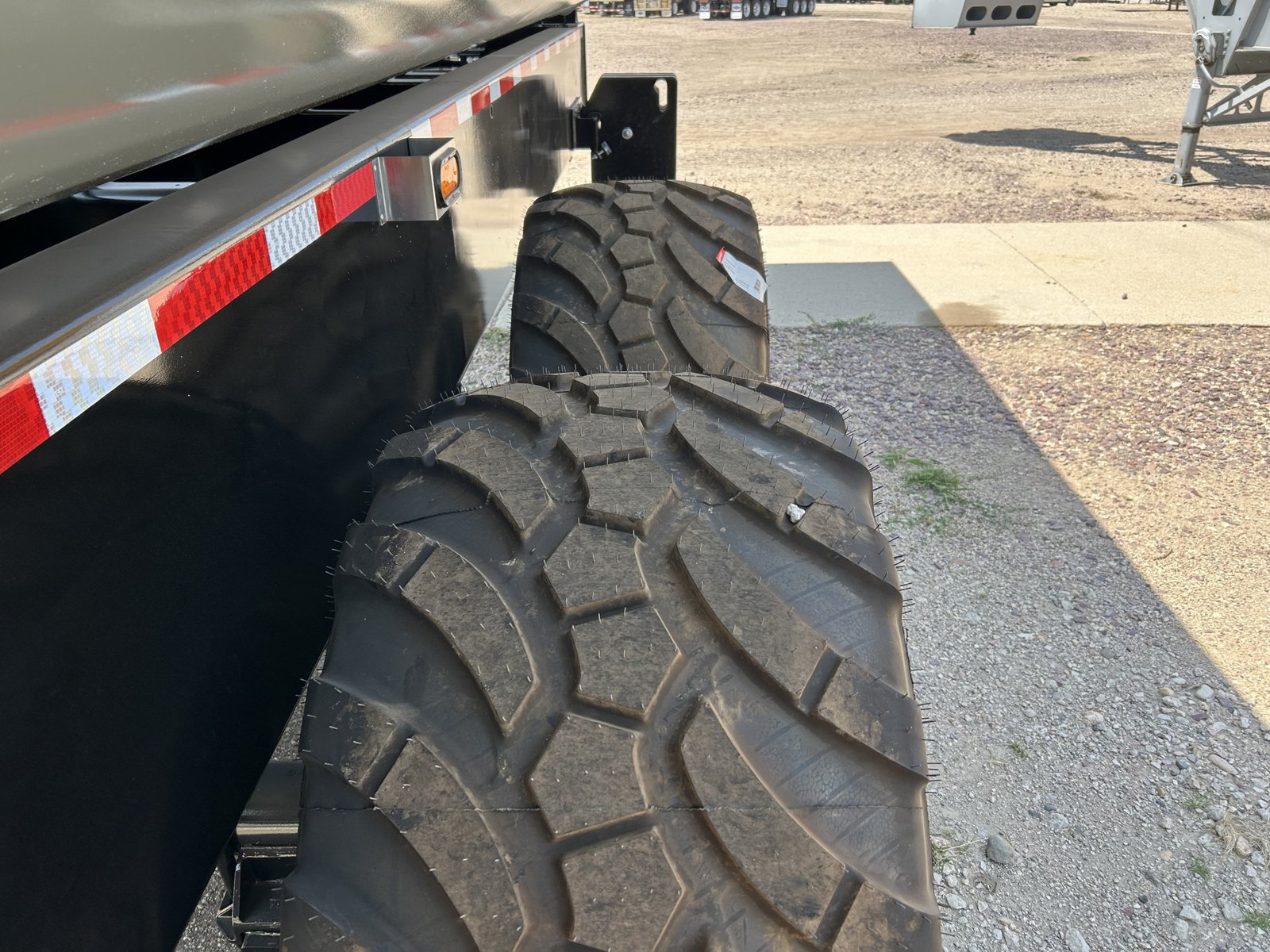

- Standard Tires: 16.00 R 20
- Optional Tires: 600/55-22.5 low ground pressure
- Brakes: New; none, hydraulic, or air options available
- Lights: 12-volt LED ICC with sealed harness
- Paint: Polyurethane, gray, white, or black; special colors available upon request
- Minimum Tractor Horsepower: 200 HP
- Minimum Tractor Hydraulic Requirements: 25–30 GPM, 2,600–2,800 PSI, 10-gallon reservoir
- Wet Kit Requirements: 2-line kit, 25–30 GPM flow rate, 1200 RPM, minimum 2500 PSI, preferred 2850 PSI
- Applications: Animal waste, dirt and sand, demolition, seasonal grain wagon, silage, stockpiling, windrowing, and other agricultural applications
Condition
New
